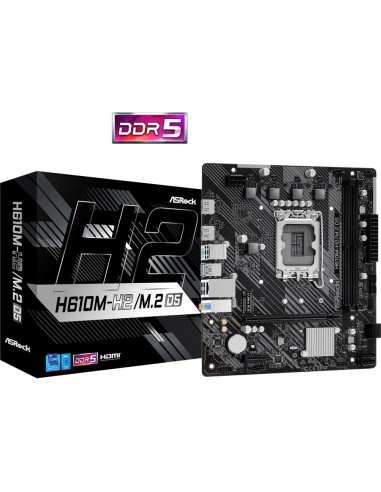

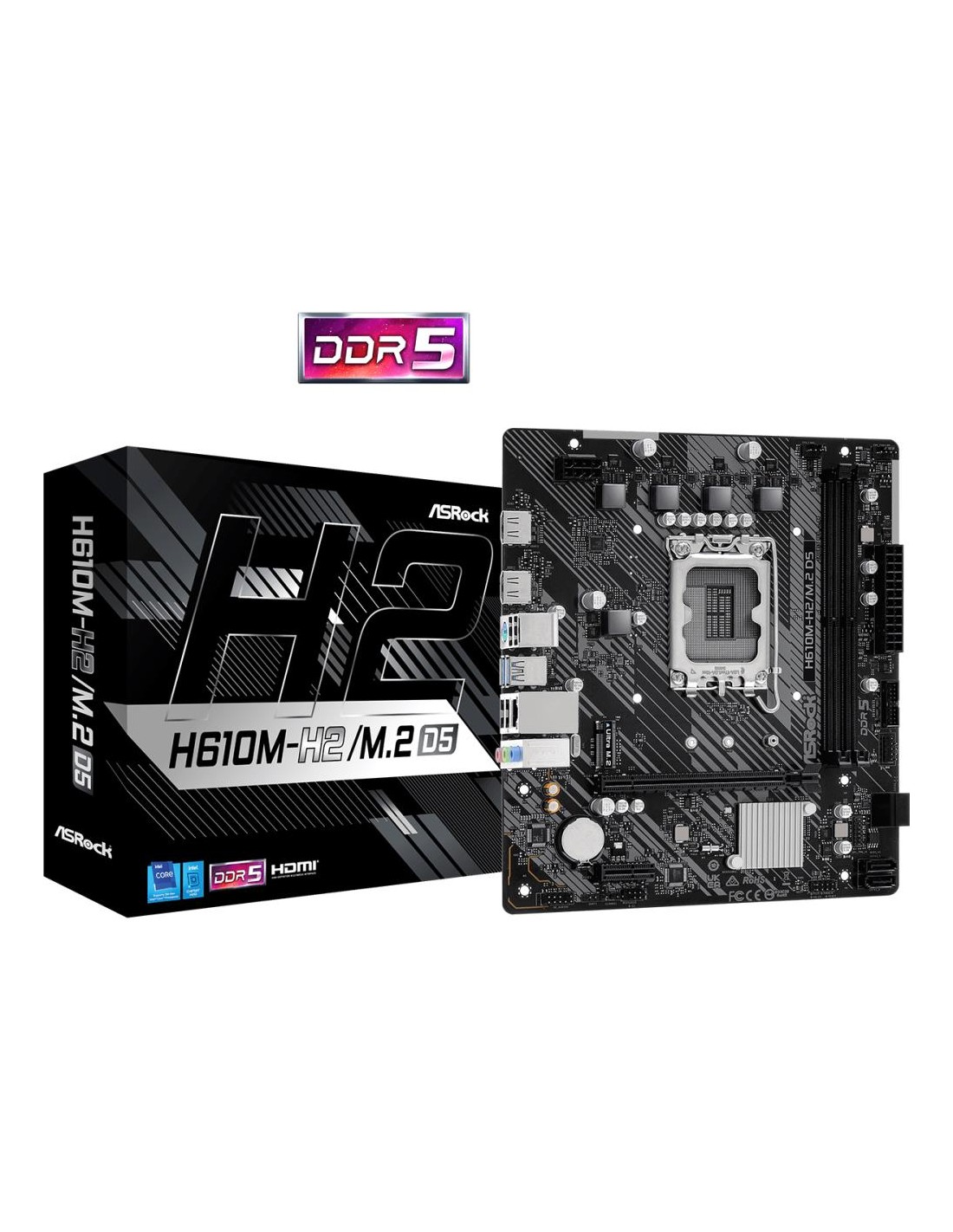

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|2xHDMI
H610M-H2/M.2D5
Yra sandėlyje
66,31 €
Nėra mokesčio
Intel H610 | LGA1700 | Micro-ATX | DDR5 | 5600/4800 MHz | Memory slots 2 | Video Depending on CPU | LAN Gigabit | Audio Realtek ALC897 | TPM Header
- Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer *Actual support may vary by CPU.
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (HDMI)
- 2
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.asrock.com/MB/Intel/H610M-H2M.2%20D5/index.asp
- Form Factor
- Micro-ATX
- Interface (SATA 3.0)
- Yes
- Frequency speed
- 4800/5600 MHz
- Memory type
- DDR5
- Model
- H610M-H2/M.2 D5
- Socket
- LGA1700
- Included Accessories
- - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
- Unit Box Height
- 0.06
- Unit Box Length
- 0.277
- Unit Box Width
- 0.241
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 2
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Memory slots
- 2
- Integrated LAN
- Gigabit
- Chipset
- Intel H610
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 1
- Expansion slots (PCI-Express 3.0 1x)
- 1
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Realtek ALC897
- TPM
- Header
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004544 cubm
- Product Net Weight
- 0.7 kg
- Unit Calculated Weight
- 0.76 kg
4710483943775
