Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.
  • Nauja
Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.

B760MSTEELLEGENDWIFI
Yra sandėlyje
148,88 €
Nėra mokesčio
Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7200 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

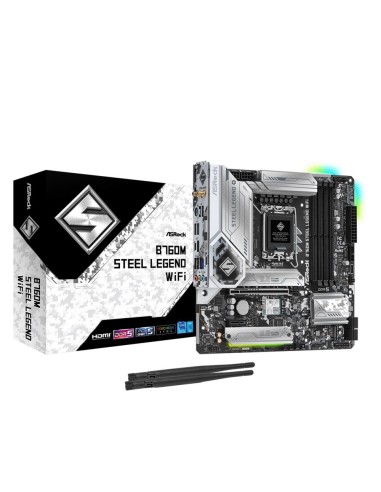

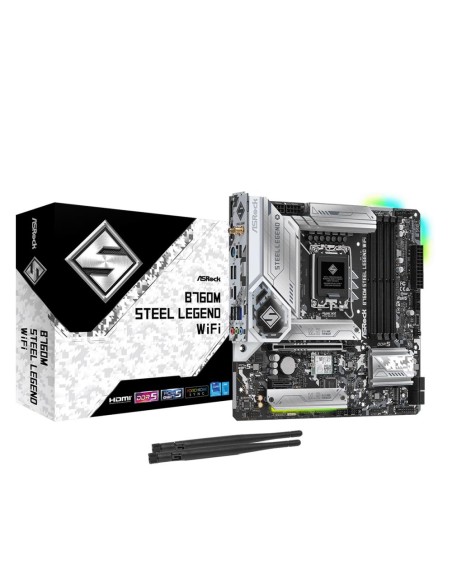

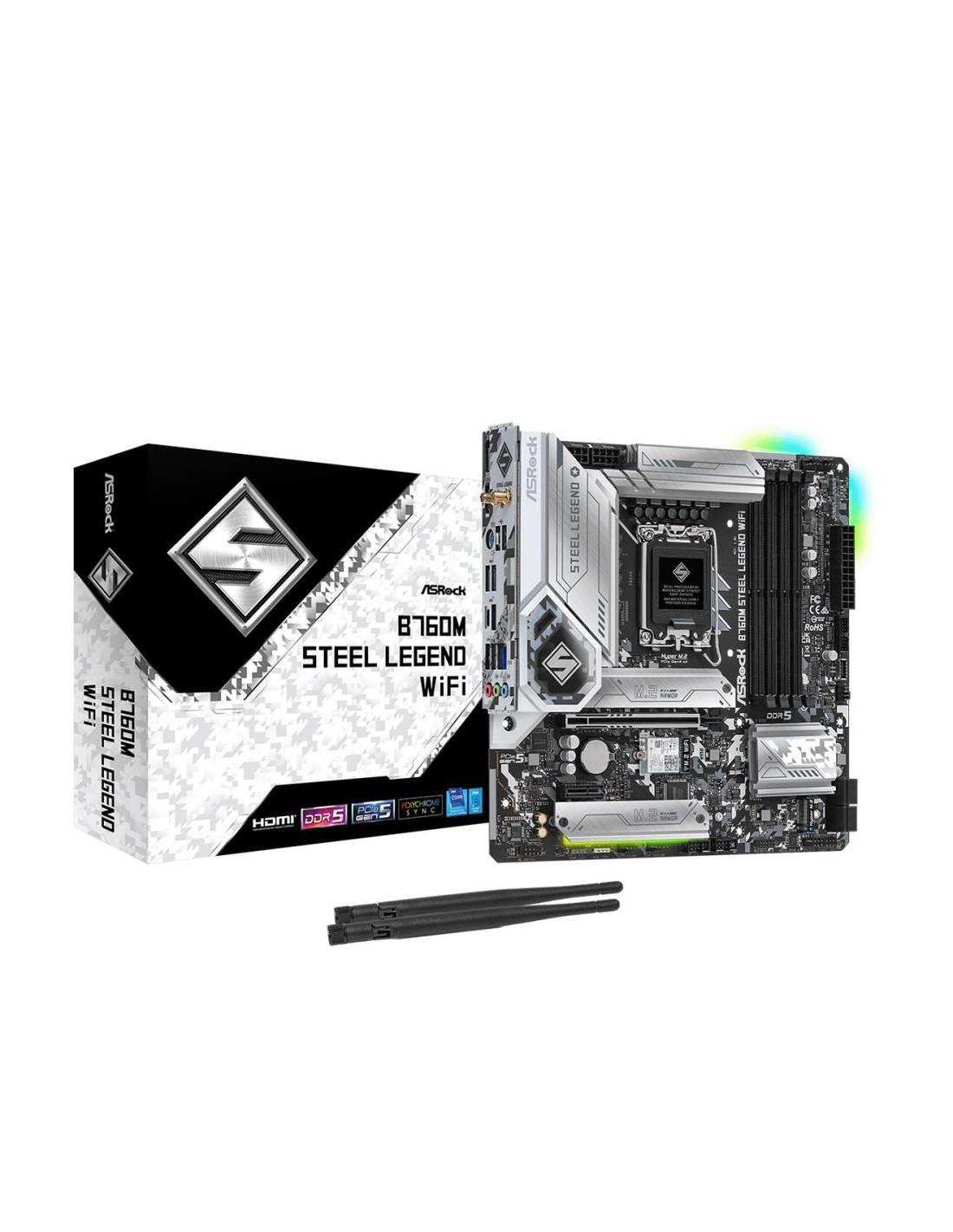

B760M Steel Legend WiFi

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
  • 1 USB 3.2 Gen2 Type-A (Rear),
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer

Garantija
36
Category Code
MBI
Input/Output connectors (DisplayPort)
1
Input/Output connectors (HDMI)
1
Input/Output connectors (USB 2.0)
2
Vendor Homepage
www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp
Form Factor
Micro-ATX
Interface (SATA 3.0)
Yes
Frequency speed
7200 MHz
Memory type
DDR5
Model
B760M STEEL LEGEND WIFI
Socket
LGA1700
Unit Box Height
0.287
Unit Box Length
0.573
Unit Box Width
0.032
Input/Output connectors (USB-C)
1
Interface (Bluetooth)
Yes
Interface (USB 2.0)
Yes
Input/Output connectors (USB 3.2)
5
Input/Output connectors (RJ45)
1
Input/Output connectors (Audio port)
3
Memory slots
4
Integrated LAN
2.5 Gigabit
Chipset
Intel B760 Express
Interface (USB 3.2)
Yes
Integrated video
Depending on CPU
Expansion slots (M.2)
4
Input/Output connectors (PS/2)
1
Integrated audio
Realtek ALC897
RAID
SATA 0, 1, 5, 10
TPM
Header
Expansion slots (PCI-Express 5.0 16x)
1
Interface (WiFi)
Yes
Expansion slots (PCI-Express 4.0 1x)
1
Units per Shipping Box
10
Unit Calculated Volume
0.005262 cubm
Product Net Weight
1 kg
Unit Calculated Weight
1.51 kg
4710483941795
