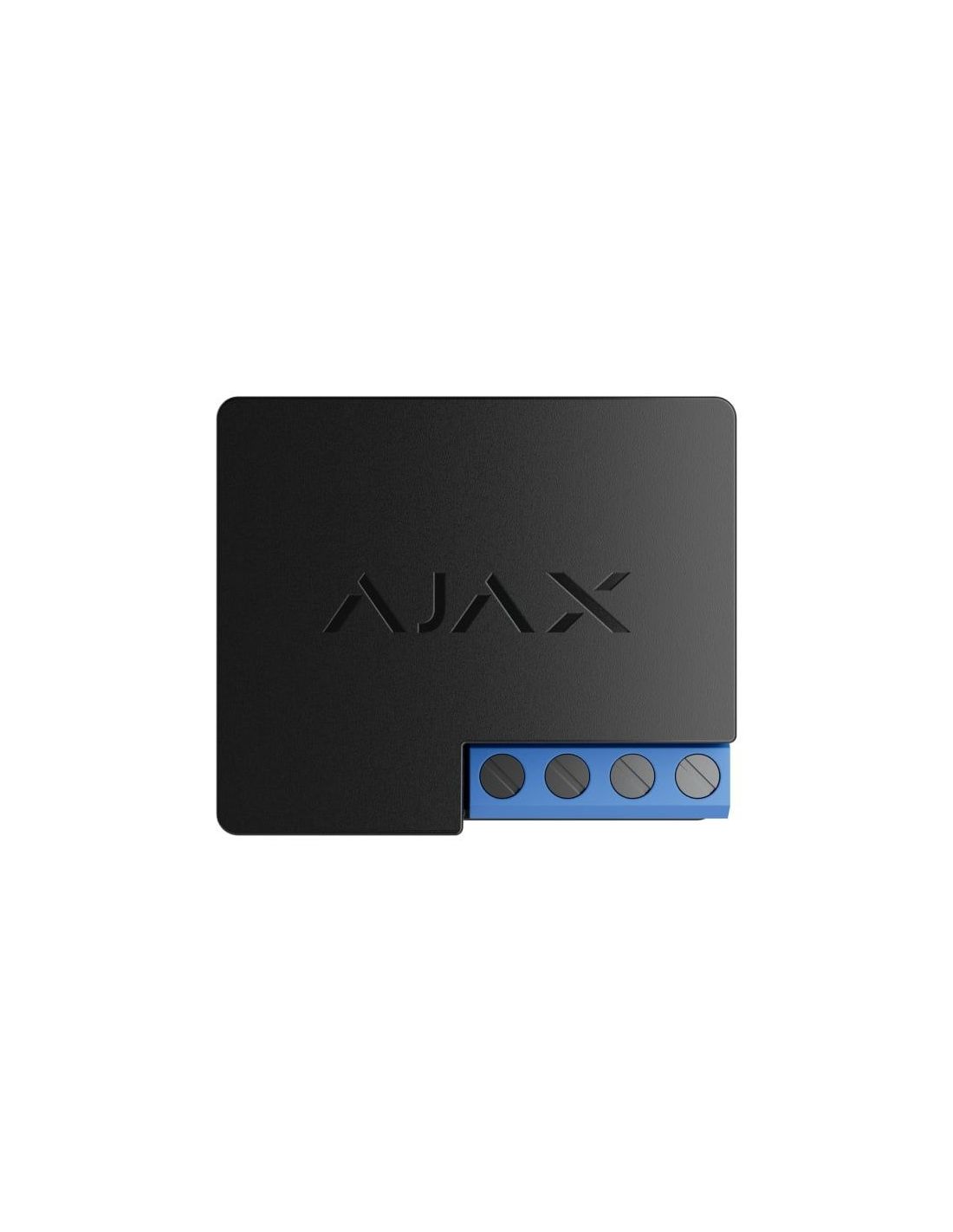

Relė Ajax Relay 38204.19.NC1 (7-24V)

Name: Relė Ajax Relay 38204.19.NC1 (7-24V)
Brand: AJAX
SKU: AJRELAY
Price: 57.13 EUR
Availability: InStock

Gamintojas: AJAX

Kodas AJRELAY

Yra sandėlyje

57,13 €

Nėra mokesčio

Maitinimas
External power supply7–24 V⎓, The relay does not supply additional power to devices connected to it.
Energy consumptionup to 1 W, In standby mode.
Cross-sectional area of the cable0.75–1.5 mm² (22–14 AWG)
Maximum resistive loadup to 5 A at 24 V⎓, up to 13 A at 110–230 V~
Maximum inductive/capacitive loadup to 3 A at 24 V⎓, up to 8 A at 110–230 V~
Voltage protectionminimum — 6.5 V⎓, maximum — 36.5 V⎓, Once the supply voltage exceeds the specified levels, the relay turns off automatically.
Temperatūros apsaugaover 149 °F at the installation site, over 185 °F inside the relay

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Pagrindinės savybės
Valdymas per išmanųjį telefonąThe user can set up the relay configurations and receive notifications in an Ajax app.
Automatizavimo scenarijaiBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO₂ concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
Reguliuojama impulso trukmėfrom 0.5 to 255 s
Veikimo režimaipulse, bistable
Kontakto būsenanormally open, normally closed

Apsauga nuo sabotažo
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
