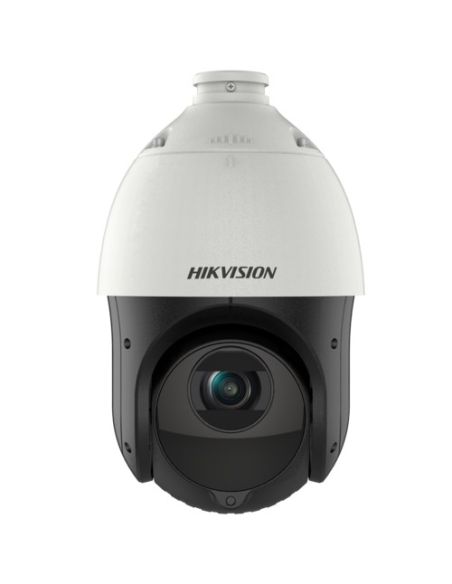

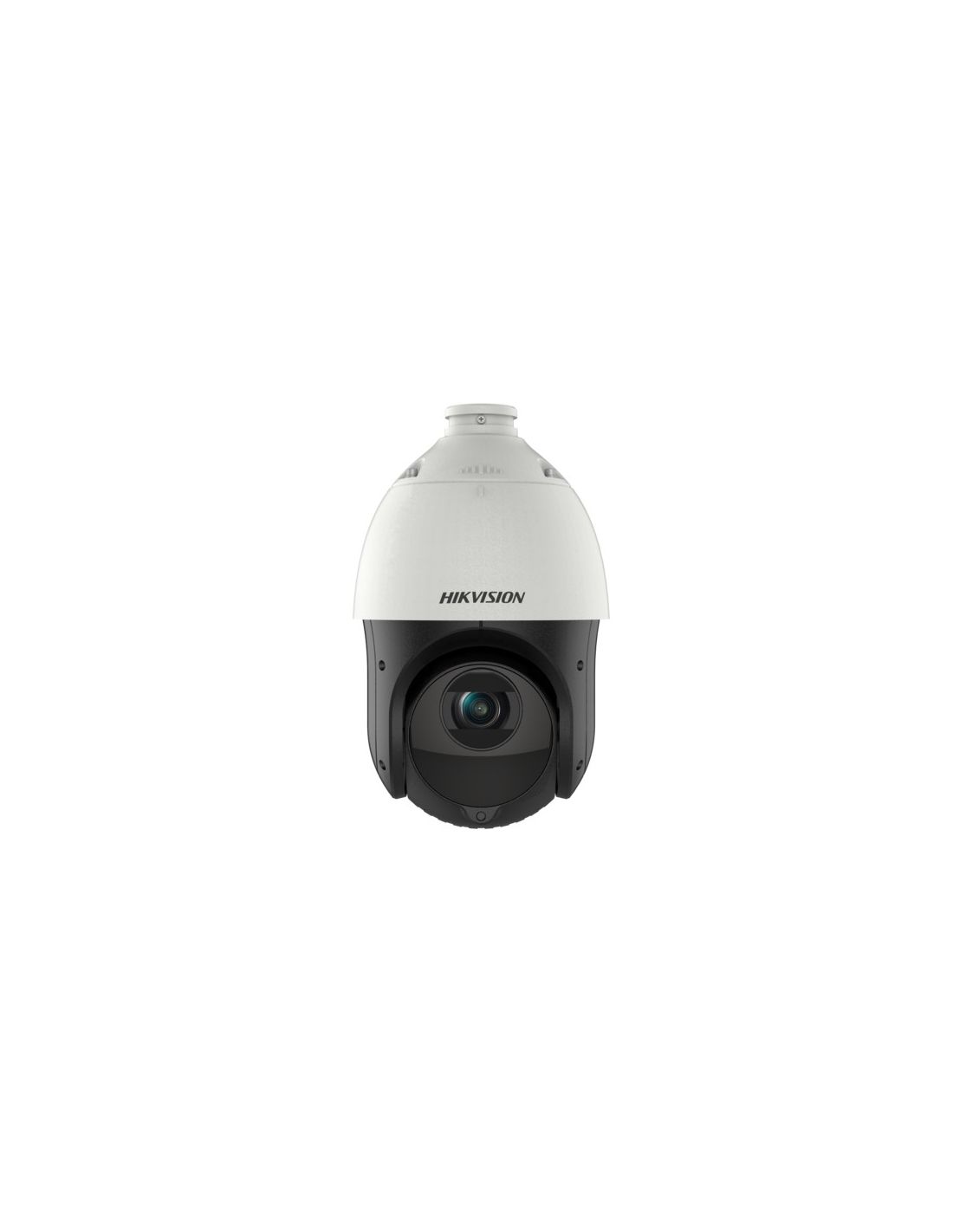

Hikvision PTZ DS-2DE4425IW-DE(T5)

Name: Hikvision PTZ DS-2DE4425IW-DE(T5)
Brand: Hikvision
SKU: KIPSPDS2DE4425IWDET5
Price: 833.62 EUR
Availability: InStock

Kodas KIPSPDS2DE4425IWDET5

Yra sandėlyje

833,62 €

Nėra mokesčio

Kamera
Sensorius1/2.8" progressive scan CMOS
Maks. rezoliucija2560 × 1440
Min. apšvietimasColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Užrakto greitis1 s to 1/30,000 s
Lėtas užraktasyes
Diena&NaktisIR cut filter
Priartinimas25x optical, 16x digital

Lęšis
FokusavimasAuto, semi-auto, manual
DiafragmaMax. F1.6
Priartinimo greitisApprox. 3.6 s
Židinio nuotolis4.8 mm to 120 mm
FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)

PTZ
FunkcijosPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Suplanuotos užduotysPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
Judėjimo kampas (Pan)360°
Judėjimo kampas (Tilt)-15° to 90° (auto flip)
Pan greitis pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt greitistilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Išsaugoti režimai300
Automatinis skenavimas8 patrols, up to 32 presets for each patrol
Skenavimas pagal išsaugotus nustatymus4 pattern scans
Išjungimo atmintisyes
3D Pozicijayes
PTZ būsenos vaizdavimasyes
Numatytos užduotysyes

Vaizdas
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
ROI8 fixed regions for each stream
Pagrindinis srautas
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Pagalbinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo bitų greitis32 kbps to 16384 kbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain profile
SVCH.264 and H.265 encoding

Garsas
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM
Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Garso pavyzdžių ėmimo dažnis8 kHz/16 kHz/32 kHz/48 kHz
Aplinkos triukšmo filtravimasYes

Tinklas
Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ProtokolaiIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
KlientasiVMS-4200, HikCentral Pro, Hik-Connect
Interneto naršyklėsChrome 57.0+, Firefox 52.0+, Safari 11+, IE11

Nuotrauka
Nuotraukos parametrų keitimasYes
Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
WDR120 dB
SNR> 52 dB
Anti-rūko režimasDigital defog
Nuotraukos stabilizavimasEIS
Nuotraukos pagražinimasBLC, HLC, 3D DNR
Privatumo kaukė24 programmable polygon privacy masks, mask color or mosaic configurable
Vienos vietos fokusavimasYes

Sąsaja
Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Signalizacija1 input, 1 output
Garsas
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
PerkrovimasYes

Įvykiai
Paprasti įvykiaiMotion detection, video tampering alarm, exception, alarm input and output
Išmanūs įvykiaiLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Signalizacijos sąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Išmaniosios funkcijos
Veidų fiksavimas
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimetro apsauga
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Pagrindinis
Galia
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
PoE (802.3at)
Darbo sąlygos-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistYes
MedžiagaADC12
DydisØ 164.5 mm × 290 mm (Ø 6.48" × 11.42")
SvorisApprox. 2 kg (4.41 lb.)

Patvirtinimai
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SaugumasUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ApsaugaIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

ean13 6931847127138
