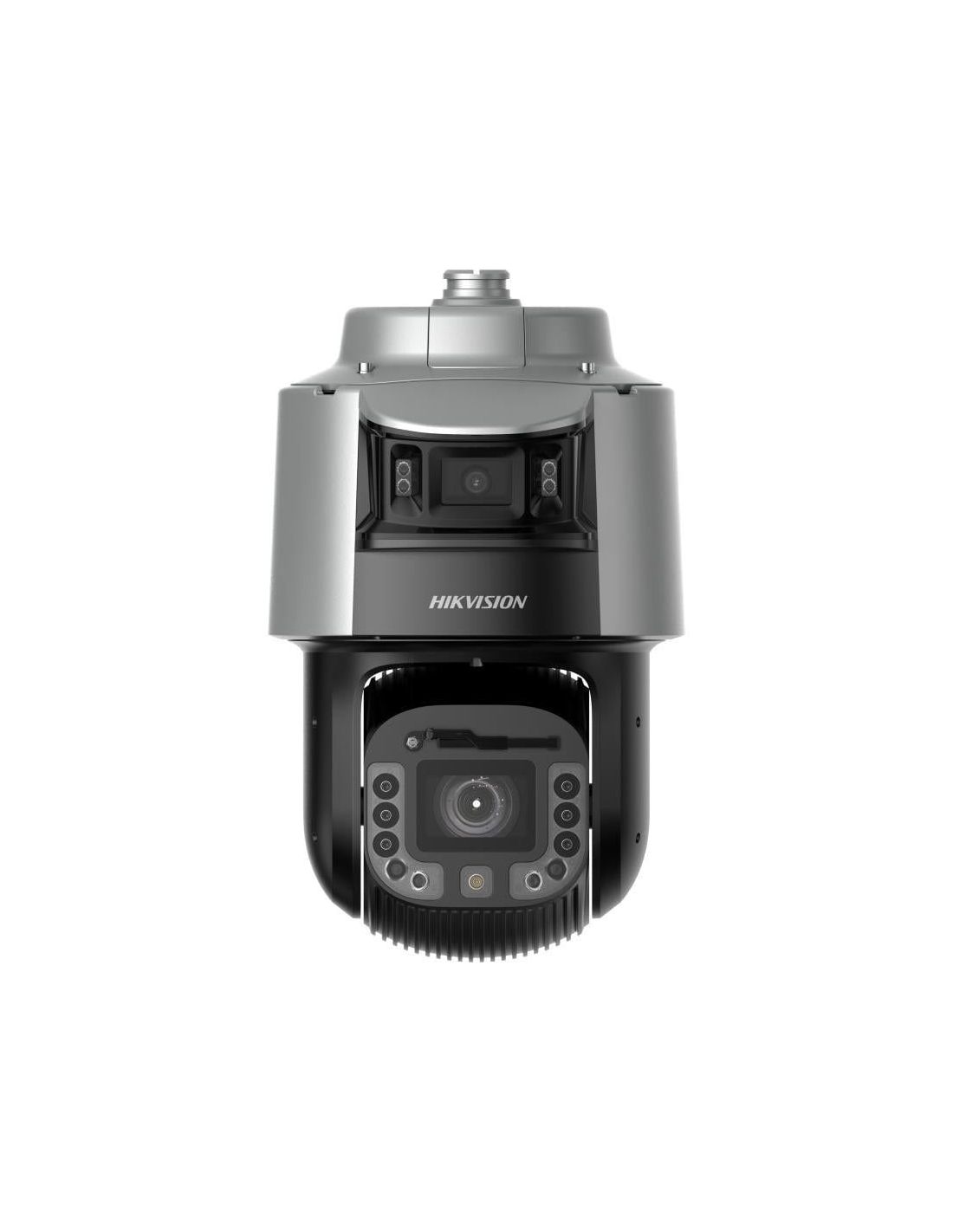

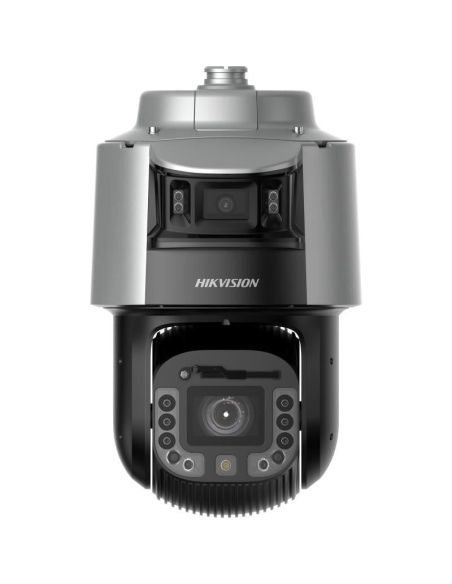

➤ Hikvision TandemVu PTZ DS-2SF8C425MXG1-EL/26(F0)
  • Nauja
➤ Hikvision TandemVu PTZ DS-2SF8C425MXG1-EL/26(F0)

Hikvision TandemVu PTZ DS-2SF8C425MXG1-EL/26(F0)

KIP2SF8C425MXG1EL26
Yra sandėlyje
2 584,27 €
Nėra mokesčio
  • Fiksuoja didelį plotą ir detalias vaizdo sritis tuo pačiu metu
  • Aukštos kokybės vaizdas su 6 MP raiška kulkos tipo kanale
  • 24/7 spalvotas vaizdas ir puikus veikimas esant silpnam apšvietimui naudojant „DarkFighter 2.0“ technologiją
  • Panoraminio kanalo posvyrio kampas reguliuojamas nuo 12° iki 24°
  • Užtikrina platų stebėjimo plotą su 25× optiniu ir 16× skaitmeniniu priartinimu
  • Platus naktinis matymas – iki 30 m balto apšvietimo ir iki 300 m IR atstumas
  • Palaiko giluminio mokymosi funkcijas
  • Atsparumas vandeniui ir dulkėms (IP67) bei vandalizmui (IK10), išskyrus stiklo langą
  • Garso ir vaizdo aliarmas: balta mirksinti šviesa ir garsinis įspėjimas gali būti suaktyvinti tam tikrų įvykių metu

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Patvirtinimai
  • Apsauga nuo korozijosNo
  • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
  • AplinkosaugaCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
  • ApsaugaIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
  • SaugumasCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
  • Garsas
  • Garso bitų dažnis32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
  • Garso glaudinimasG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Garso atrankos dažnis8 kHz,16 kHz,32 kHz,48 kHz
  • Pašalinių garsų šalinimasYes
  • Kamera
  • Diena&Naktis[Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
  • Vaizdo jutiklis[Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Didžiausia raiška[Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
  • Minimalus apšvietimas[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
  • Užrakto greitis1 s to 1/30000 s
  • Lėtas užraktasYes
  • Priartinimas[PTZ channel] 25 × optical, 16 × digital
  • Išmaniosios funkcijos
  • Veido atpažinimasDetects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures
  • Face ComparisonUp to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
  • Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
  • Perimetro apsaugaLine crossing detection, region entrance detection, intrusion detection, region exiting detection
  • Kelių eismo ir transporto priemonių aptikimasSmart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Funkcijos
  • Pagrindinės funkcijos[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
  • Sąsaja[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Išmaniosios funkcijosLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
  • Išmani jungtisManual tracking, tracking takeover, linked tracking capture
  • Bendra informacija
  • Rasos šalinimasYes
  • MatmenysØ290 mm × 453.2 mm (Ø11.42" × 17.84")
  • Pagrindinės funkcijosmirror,password protection
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • MedžiagaADC12
  • Darbo sąlygos-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
  • Galia36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
  • SvorisApprox. 10.5 kg ( 23.15 lb.)
  • WiperYes
  • Apšvietimas
  • Išmanus papildomas apšvietimasYes
  • Papildomo apšvietimo diapazonas[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
  • Nuotrauka
  • Dienos/nakties perjungiklisDay,night,auto,schedule
  • Rūko šalinimasDigital defog
  • Nuotraukų pagražinimasHLC,3D DNR
  • Nuotraukos parametrų keitiklisYes
  • Vaizdo nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Vaizdo stabilizavimasEIS (Built-in gyroscope to improve EIS performance)
  • Privatumo kaukė[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • Regioninė ekspozicijaYes
  • Regioninis fokusavimas[Panoramic channel] No, [PTZ channel] Yes
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 150 dB
  • Sąsaja
  • Signalizacija7 input(s), 2 output(s)
  • Garsas1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • Integruotas garsiakalbis1 built-in speaker
  • Interneto sąsaja1 RJ45 100M self-adaptive Ethernet port
  • Saugyklos vietaBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • PerkrovimasYes
  • Objektyvas
  • Diafragma[Panoramic channel] F1.0, [PTZ channel] F1.6
  • FOV[Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
  • Židinio nuotolis[Panoramic channel] 2.8 mm, [PTZ channel] 6 to 150 mm
  • FokusavimasAuto,semi-auto,manual
  • Priartinimo greitis[Panoramic channel] No, [PTZ channel] approx. 5.6 s
  • Linkage and Tracking
  • Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • Išmanus sekimasManual tracking, auto-tracking 3.0
  • Tinklas
  • API ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
  • KlientasiVMS-4200,HikCentral Pro,Hik-Connect
  • Vidinė atmintisNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • ProtokolaiIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
  • SaugumasPassword protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • Naudotojas/prievadasUp to 32 users. 3 user levels: administrator, operator, and user
  • NaršyklėPlug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+
  • PTZ
  • 3D pozicijaYes
  • Movement Range (Pan)360° endless
  • Movement Range (Tilt)[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
  • PTZ būsenos vaizdavimasYes
  • Pan greitis[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • Patruliavimas8 patrols, up to 32 presets for each patrol
  • Išsaugotų rėžimų skenavimas4 pattern scans, record time over 10 minutes for each scan
  • Išjungimo atmintisYes
  • Išsaugotų nustatymų sustabdymasYes
  • Iš anksto išsaugoti nustatymai300
  • Proporcingas Pan[Panoramic channel] No, [PTZ channel] Yes
  • Užduočių grafikasPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • Tilt greitis[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
  • Supplement Detection
  • CompassNo
  • GyroscopeYes
  • Satellite PositioningNo
  • Vaizdas
  • H.264 tipasBaseline profile,Main profile,High profile
  • H.265 tipasMain profile
  • Pagrindinis srautas[Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
  • Region of Interest (ROI)8 fixed regions for each stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Antrinis srautas[PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536,960 × 432)
  • Trečias srautas[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
  • Vaizdo bitų dažnis32 Kbps to 16 Mbps
  • Vaizdo glaudinimasMain stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
6936422110130
