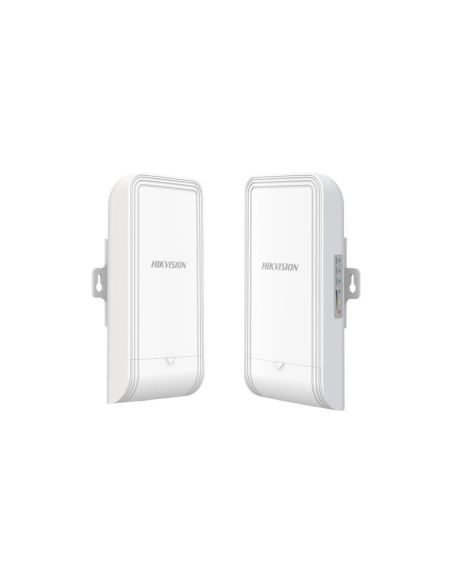

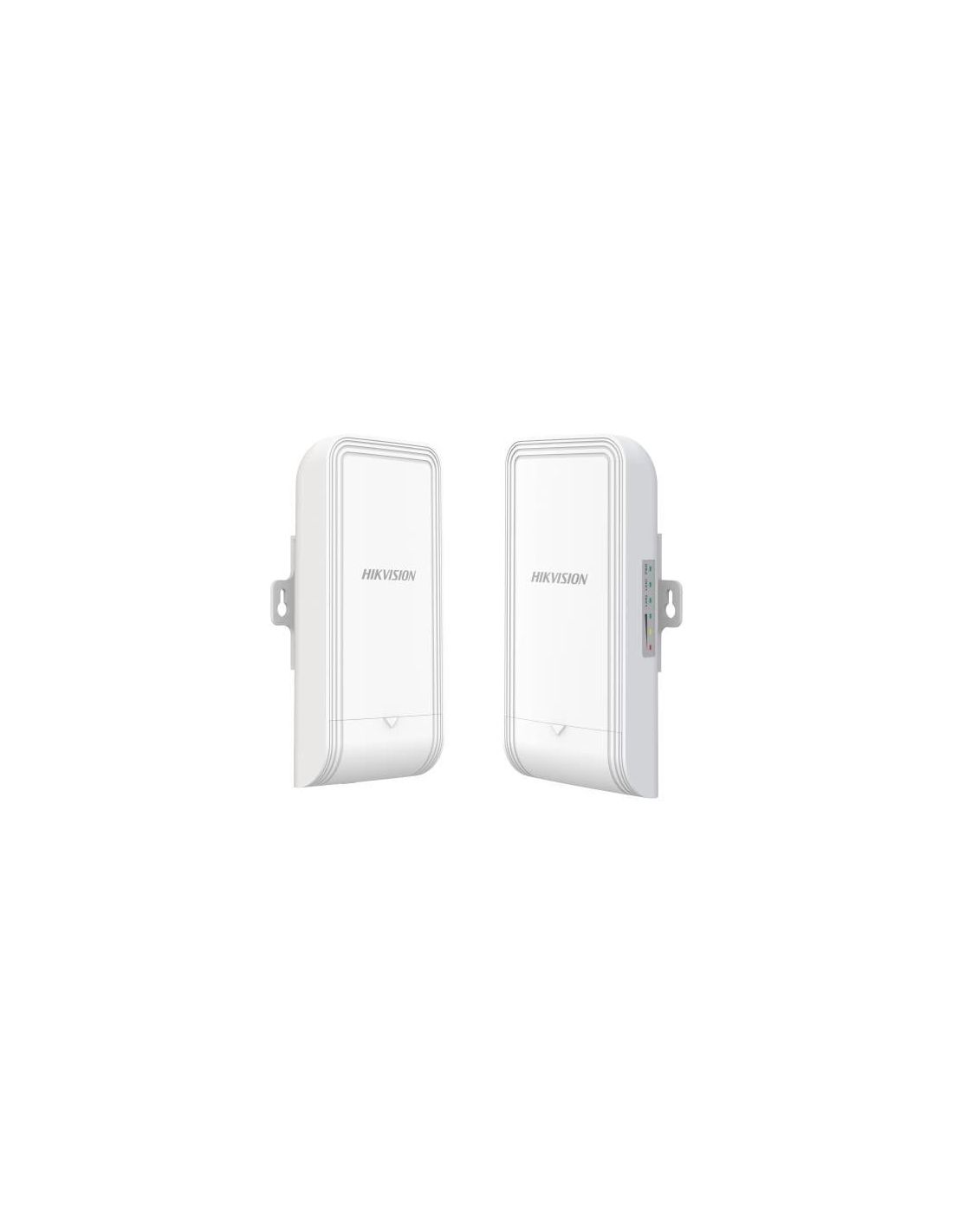

➤ Belaidis LAN perdavimo komplektas Hikvision DS-3WF02-5AC/D
  • Nauja
➤ Belaidis LAN perdavimo komplektas Hikvision DS-3WF02-5AC/D

Belaidis LAN perdavimo komplektas Hikvision DS-3WF02-5AC/D

CPEDS3WF025ACD
Yra sandėlyje
117,32 €
  • Belaidis perdavimo atstumas iki 5 km
  • 867 Mbps 802.11ac belaidis tiltas
  • Integruota 12 dBi 2×2 MIMO antena
  • Vizualizuotas topologijos valdymas
  • Standartinė PoE įvestis ir išvestis
  • Plug and Play funkcionalumas

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Patvirtinimai
  • Cheminių komponentų sertifikavimasCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
  • SaugumasCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Bendrosios savybės
  • Bendras svoris1.1 kg (2.43 lb)
  • Apsauga nuo dulkių ir drėgmėsIP55
  • Installation ModePole Mounting
  • Grynasis svoris 0.26 kg (0.57 lb) per device
  • Pakuotės Matmenys (P × A × G)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
  • PakuotėjeWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
  • Packing MethodPacking in pairs
  • Energijos suvartojimas2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
  • Produkto matmenys (P × A × G) 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
  • Laikymo drėgmė5% to 95% (no condensation)
  • Sandėliavimo temperatūra-40 °C to 80 °C (-40 °F to 176 °F)
  • Darbinė drėgmė5% to 95% (no condensation)
  • Darbinė temperatūra-30 °C to 65 °C (-22 °F to 149 °F)
  • Hardware Parameter
  • LED indikatoriusPower indicator,LAN indicator,Signal intensity indicator
  • Tinklo sąsaja2 × 10/100 Mbps RJ45 ports
  • Maitinimo šaltinis48V PoE/12~24V DC;Check the physical interface image below for more details.
  • PerkrovimasHardware resetting button
  • PoE
  • PoE Distance100 m
  • PoE prievadasAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
  • PoE maitinimo biudžetas10 W
  • Programinės įrangos funkcijos
  • Application FunctionIFM,IPM,DFS,TPC
  • Channel SelectionAuto/manual selection
  • Kanalo plotis20/40/80 MHz
  • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning8. PoE output management
  • Management MethodHCP,Web,iVMS-4200,HPP
  • ProtokolaiNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
  • Security MechanismWireless network name hidden
  • Security ModeWPA2-PSK
  • Sistemos žurnalasSyslog,Control center information
  • UpgradeWeb,iVMS-4200,HCP,HPP
  • Belaidžio ryšio parametrai
  • Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
  • Antenos stiprinimas12 dBi
  • Max. Transmission Rate of Air Interface≤ 867 Mbps
  • Receiving Sensitivity-84 ±2dBm@AC80-MCS0
  • Throughput RatePTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 4): ,80 Mbps/1 KM(AC80)
  • Perdavimo galia22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
  • Belaidžio ryšio standartasIEEE 802.11/a/n/ac
  • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
