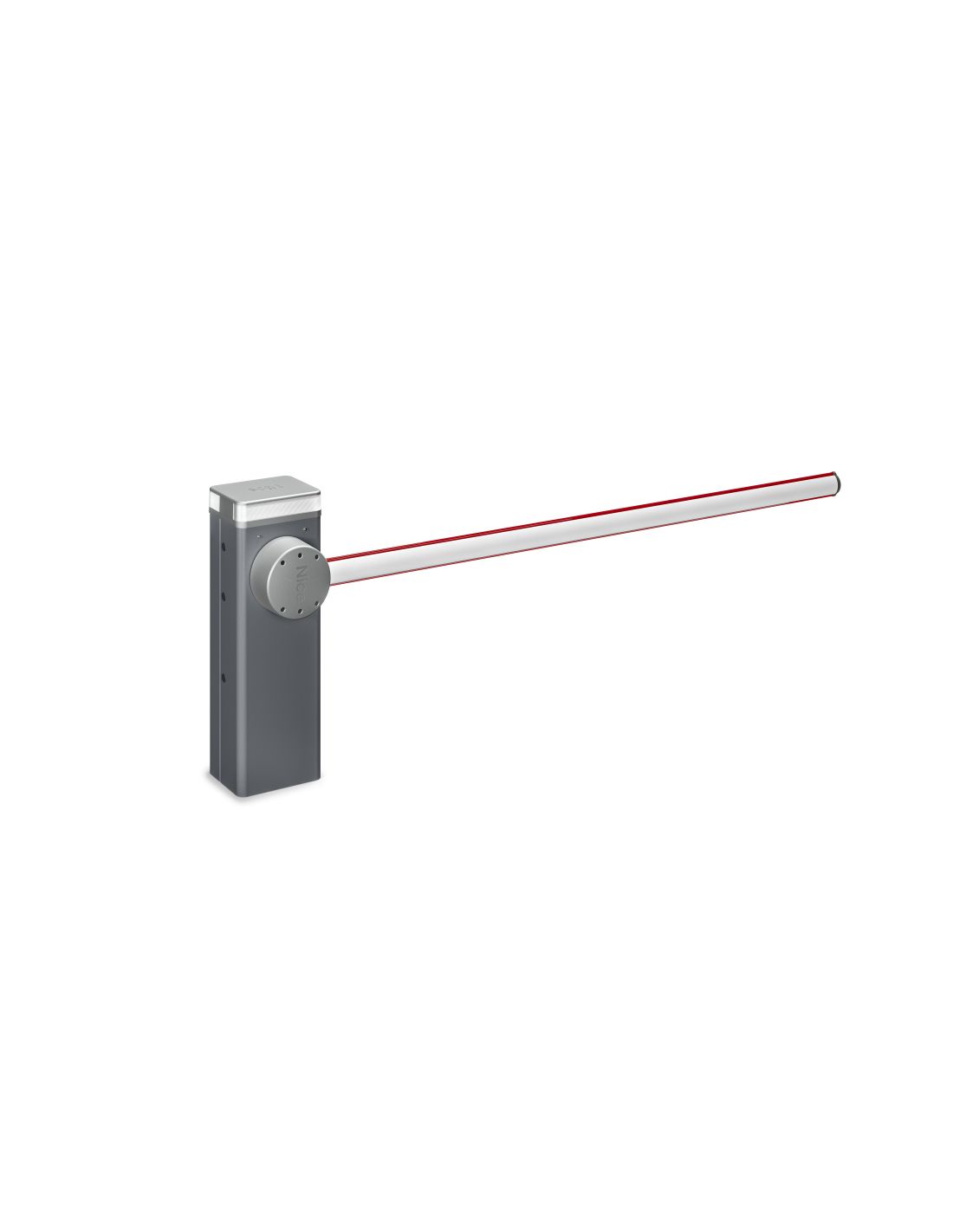

- Tipas: Kelio užtvaras
- Modelis: NICE M3BAR
- Maksimalus ilgis: iki 3 m
- Ciklai per valandą: 500
- Atidarymo greitis: 1,5 / 4 s
- Įtampa: 230 VAC / 24 VDC
- IP klasė: IP54
- Sukimo momentas: 100 Nm
- Galia: 150 W
- Bendra informacija
- ModelisM3BAR
- Strypo ilgis3 m
- NaudojimasFor intensive use; electromechanical barrier raising system for road access control
- Variklio tipasNon-reversible 230 VAC, 24 VDC motor
- Energijos suvartojimas150 W
- Maitinimo šaltinis230 VAC 50/60 Hz input, 24 VDC output
- Atidarymo greitis1.5 to 4 seconds (adjustable)
- Sukimo momentas100 Nm
- Darbo ciklasUp to 500 cycles/hour
- Apsaugos klasėIP54
- Darbinė temperatūra-20°C to +55°C
- Korpuso medžiagaSteel case with cataphoresis treatment and painted finish
- Spalvų pasirinkimaiOrange (RAL2004), White (RAL9010), Grey (RAL7015), Stainless steel (INOX)
- Matmenys (I x P x A)400 x 299 x 1215 mm
- Svoris80 kg
- Valdymo blokasIntegrated control unit with display and joystick for simplified setup
- Išmaniosios funkcijosSupports “master/slave” synchronized movement for opposing barriers
- Saugos funkcijosObstacle detection, encoder movement control, electromechanical limit switches, auto diagnostics
- Režimas nutrūkus elektros tiekimuiOptional 24 VDC battery backup (PS224) for blackout operation
- Budėjimo režimasAutomatic power-saving when inactive
- Atsileidimo mechanizmasManual side release with metal key (right or left installable)
- RyšysBlueBUS, BiDi, Yubii, Solemyo, Opera compatible; programmable via MyNice Pro App or BiDi-WiFi
- PriedaiCompatible with rubber trim, plug-in signal lights (XBA4), swivel attachment (XBA10), joints (XBA11), aluminium bar (XBA15), reflective adhesive strips (WA10), racks (WA13), loop detectors (LP21, LP22)
- SertifikataiCE compliant
