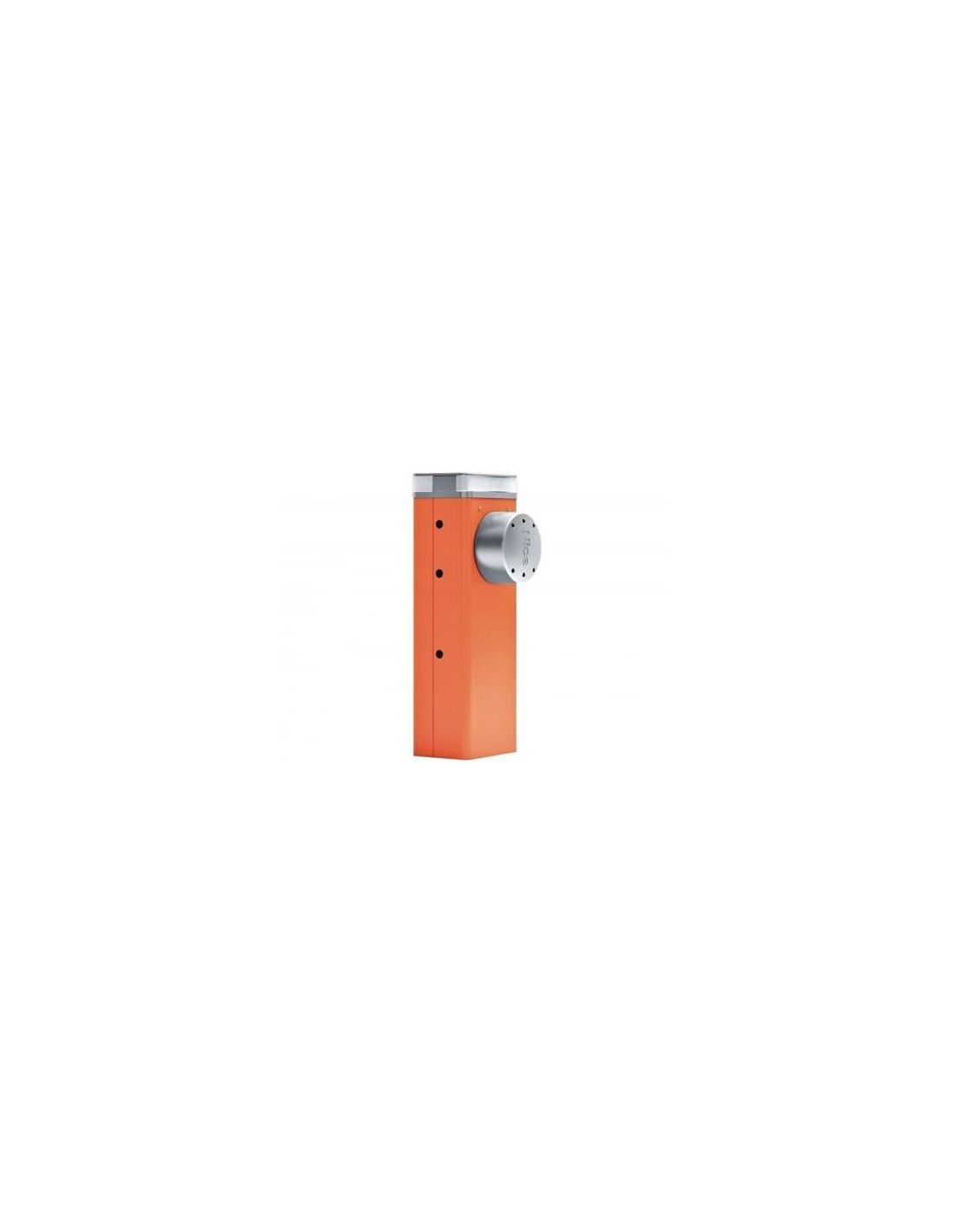

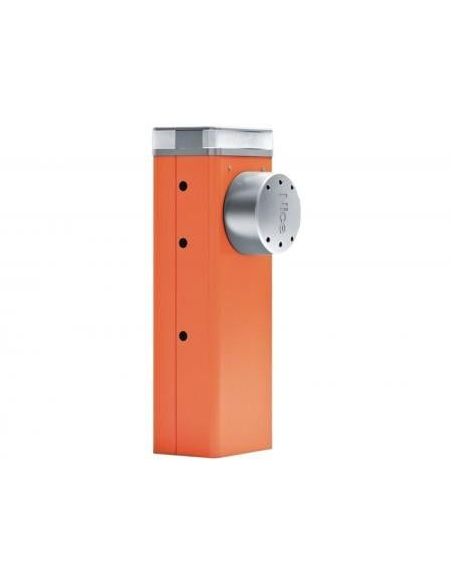

- Tipas: Kelio užtvaras
- Modelis: NICE LBAR
- Maksimalus ilgis: iki 9 m
- Korpusas: Plieninis
- Ciklai per valandą: 150
- Atidarymo greitis: 11 / 18 s
- Įtampa: 230 VAC / 24 VDC
- IP klasė: IP54
- Sukimo momentas: 400 Nm
- Galia: 160 W
- Bendra informacija
- ModelisL9BAR
- Strypo ilgisUp to 9 m
- NaudojimasElectromechanical barrier raising system designed for intensive use in wide road access points (parking, industrial zones, etc.)
- Variklio tipasNon-reversible 24 VDC gearmotor with integrated control unit
- Energijos suvartojimas300 W
- Maitinimo šaltinis230 VAC 50/60 Hz input, 24 VDC motor output
- Atidarymo greitis6 to 10 seconds (adjustable depending on bar length and balancing)
- Sukimo momentas300 Nm
- Darbo ciklasUp to 200 cycles/hour (ideal for large-scale industrial or commercial applications)
- Apsaugos klasėIP54
- Darbinė temperatūra-20°C to +55°C
- Korpuso medžiagaSteel enclosure with cataphoretic treatment and polyester powder coating; stainless steel version also available
- Spalvų pasirinkimaiOrange (RAL2004), White (RAL9010), Grey (RAL7015), Stainless steel (INOX)
- Matmenys (I x P x A)400 x 299 x 1215 mm
- SvorisApprox. 95 kg
- Valdymo blokasBuilt-in control board with LCD display and joystick interface for intuitive setup
- Išmaniosios funkcijosMaster/slave synchronization mode for dual barrier configurations
- Saugos funkcijosElectromechanical limit switches, encoder-based movement control, obstacle detection, auto diagnostics
- Režimas nutrūkus elektros tiekimuiCompatible with PS224 backup battery system (24 VDC) for continued operation during blackouts
- Budėjimo režimasAutomatic energy-saving when idle
- Atsileidimo mechanizmasManual release with metal key, mountable on either side
- RyšysBlueBUS, BiDi, Yubii, Solemyo solar kit support, Opera bus system; programmable via MyNice Pro App and BiDi-WiFi
- PriedaiCompatible with XBA3 (rubber edge), XBA4 (signal light), XBA10 (bar swivel), XBA11 (articulated joint), XBA15 (aluminium bar), WA10 (reflective stickers), WA13 (rack), WA12 (bar support stand), LP21/LP22 (loop detectors)
- SertifikataiCE compliant
