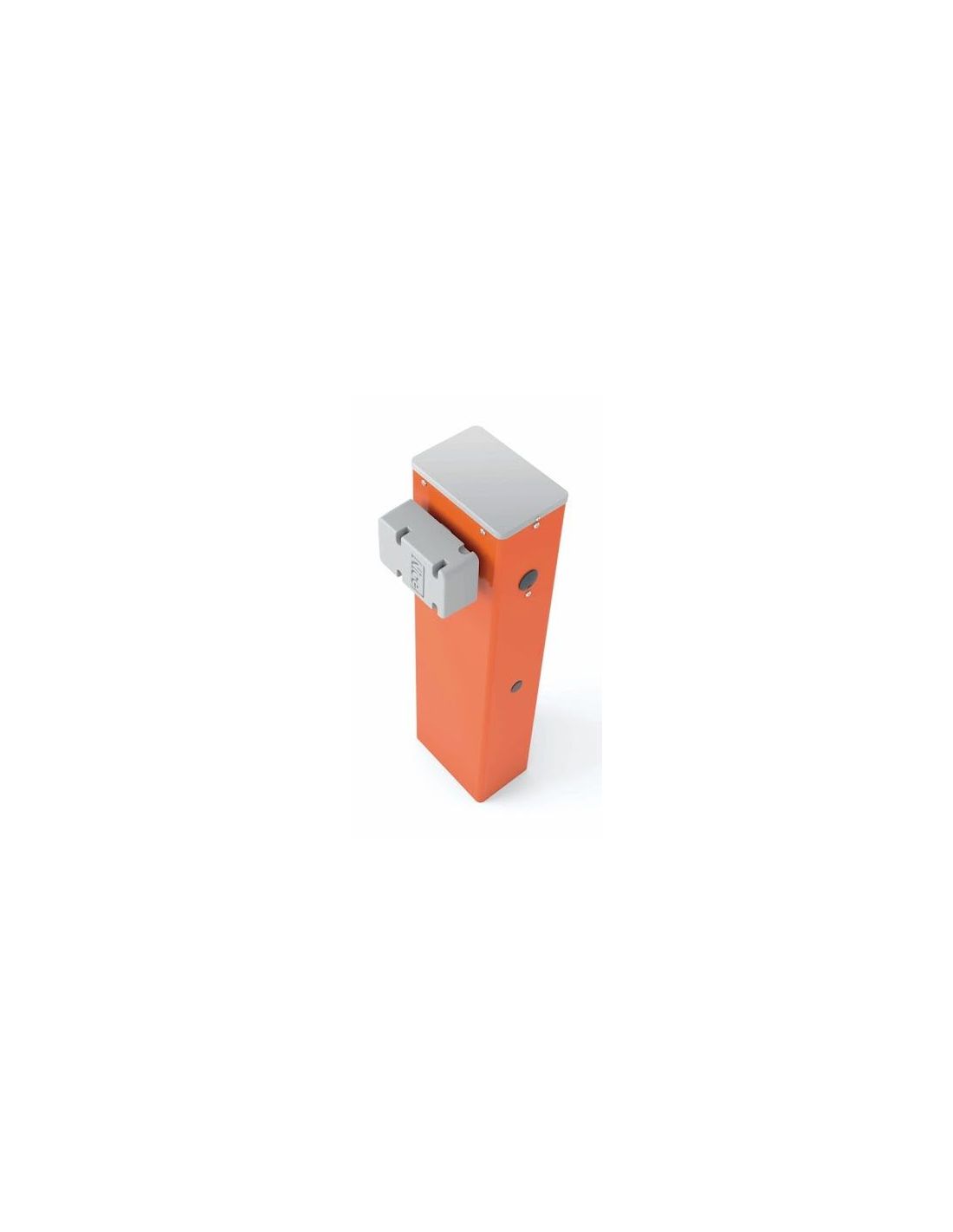

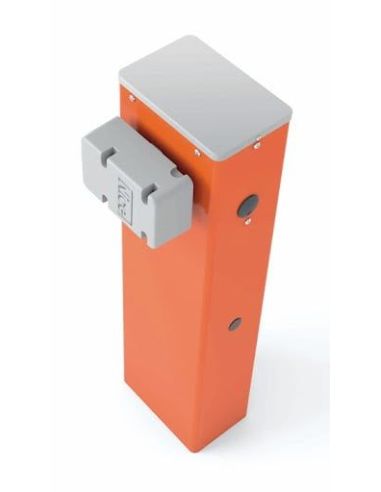

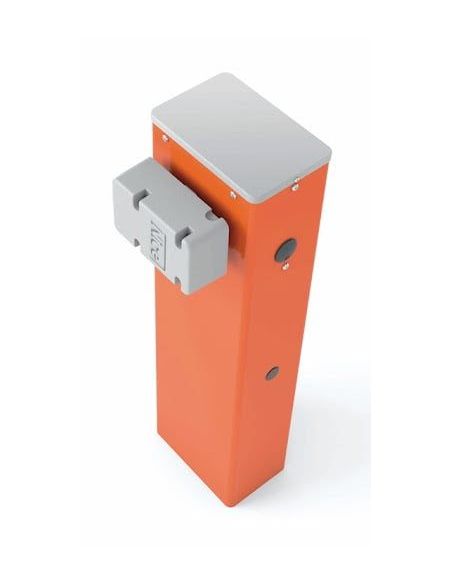

- Tipas: Kelio užtvaras
- Modelis: NICE Widem
- Mechanizmas: Elektromechaninis
- Maksimalus ilgis: iki 4 m
- Ciklai per valandą: 300
- Atidarymo greitis: 3.5 s
- Pritaikymas: Intensyviam naudojimui
- Pavara: 24 VDC
- Valdymo blokas: Integruotas
- Bendra informacija
- ModelisWIDEM
- Strypo ilgisUp to 4 m (modular aluminium bar)
- NaudojimasBarrier gate operator system for medium-length entrances (e.g. parking lots, access roads)
- Variklio tipas24 VDC gearmotor, non-reversible, with integrated control unit
- Energijos suvartojimas300 W
- Maitinimo šaltinis230 VAC 50/60 Hz input, 24 VDC motor output
- Current draw1.1 A
- Atidarymo greitis3.5 seconds (adjustable electronically)
- Sukimo momentas140 Nm
- Darbo ciklasUp to 300 cycles/hour
- Apsaugos klasėIP54
- Darbinė temperatūra-20°C to +55°C
- Korpuso medžiagaGalvanised steel with orange polyester powder coating (WIDEM); also available in white, grey, or stainless steel (WIDEMWH, WIDEMGR1, WIDEMI)
- Matmenys (I x P x A)320 x 205 x 1000 mm
- Svoris46 kg
- Valdymo blokasLocated in the bottom of the body, single board for all Wide versions, with fast-access front panel and joystick-based setup
- Saugos funkcijosEncoder-based movement control, obstacle detection, crush protection during opening/closing
- Atsileidimo mechanizmasTriangular metal key, protected from external elements
- MontavimasBar can be installed on either the left or right side
- Atsarginė baterijaCompatible with PS324 (24 V battery with integrated charger)
- Connectivity and Smart FeaturesBlueBUS, BiDi, Yubii, Solemyo (solar), Opera; programmable via MyNice Pro App, Bidi-WiFi, Pro-View
- Budėjimo režimasAutomatic power-saving when idle
- SuderinamumasIntegrated radio receiver; compatible with ERA INTI, ERA ONE, MYGO, DOMÌ transmitters, BlueBUS photocells, ERA FLOR series, ELDC lights, and loop detectors (LP21, LP22)
- Standard accessories supportXBA19 (aluminium bar), XBA4 (signal light), WIA10 (swivel attachment), SIA1 (anchoring base), WA12 (movable support), WA11 (joint for bars)
- SertifikataiCE compliant
