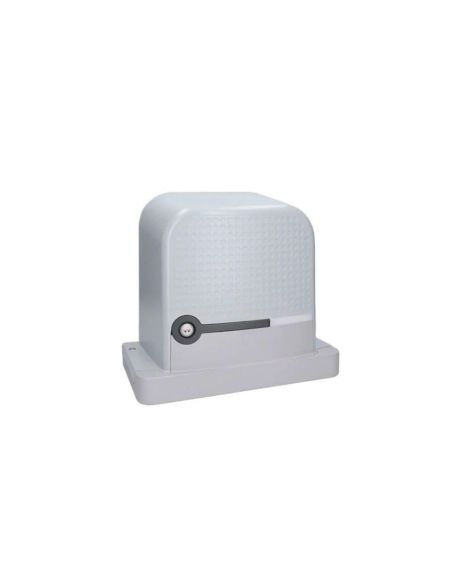

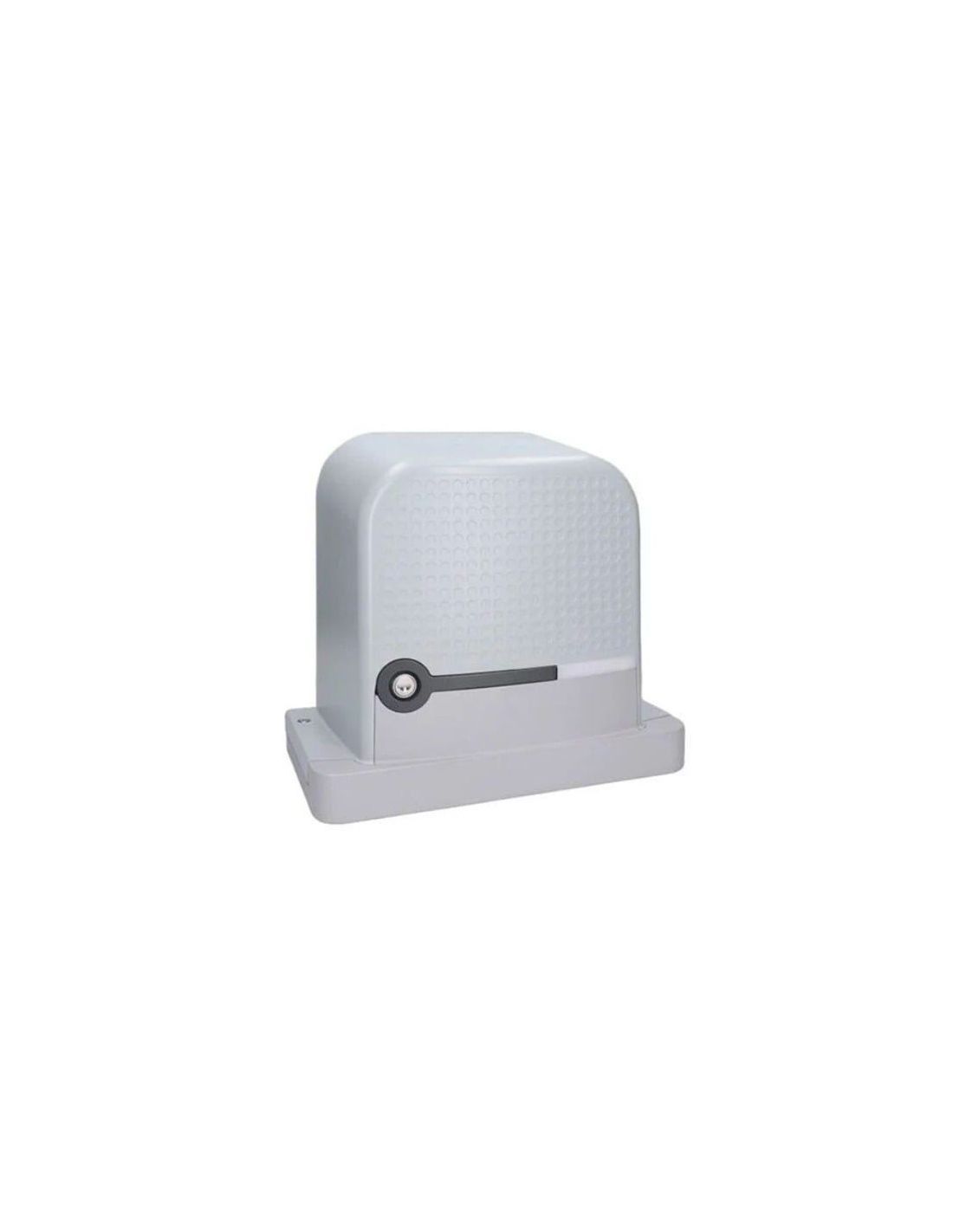

- Tipas: Elektromechaninė pavara
- Modelis: NICE RBS600
- Įtampa: 24 VDC
- Valdymo blokas: Integruotas
- Imtuvas: Integruotas
- Ribinis jungiklis: Magnetinis
- Lankstomiems vartams iki 600 kg
- Bendra informacija
- ModelisRBS600
- TipasNon-reversible electromechanical gearmotor, 24 VDC, with integrated control unit and radio receiver, magnetic limit switch
- PritaikymasFor sliding gates weighing up to 600 kg
- Maitinimo šaltinis230 VAC ±10%, 50/60 Hz
- Motor voltage24 VDC
- Power rating450 W
- Current draw2.1 A
- Greitis0.34 m/s
- Thrust force600 N
- Operating cycleUp to 40 cycles/hour for a 4 m gate
- Apsaugos klasėIP44
- Darbinė temperatūra-20°C to +55°C
- Matmenys340 x 220 x 303 mm (L x W x H)
- Svoris11 kg
- Limit switch typeMagnetic
- Atsileidimo mechanizmasSafe and easy-to-use manual release lever
- Control featuresSelf-teaching travel limits, automatic obstacle detection, self-diagnostics with feedback via flashing light
- Smart programmingMyNice Pro App, BiDi-WiFi, Pro-View compatible
- Connectivity protocolsBlueBUS, BiDi, Yubii, Opera, Solemyo (solar system)
- Photocell compatibilityEPSB (Slim), EPMB (Medium), EPLB (Large) – BlueBUS; EPMOR, EPMORB, EPMOW (reflective and wireless)
- Flashing lightsELDC (integrated antenna), WLT (multi-function LED)
- Atsarginė baterijaCompatible with PS124 (24V battery and integrated charger)
- Optional accessoriesMCU1 (spare control unit), MLAE21/22/44 (expansion boards), racks ROA6, ROA66, ROA7, ROA8
- Transmitter compatibilityERA INTI, ERA ONE, MYGO, ERA FLOR, DOMì (433.92 MHz), ERA ONE BD, MYGOBD, ERA ONE LR
- NotesNot compatible with O-Box functions of Opera system
- SertifikataiCE compliant
