- Tipas: Elektromechaninė pavara

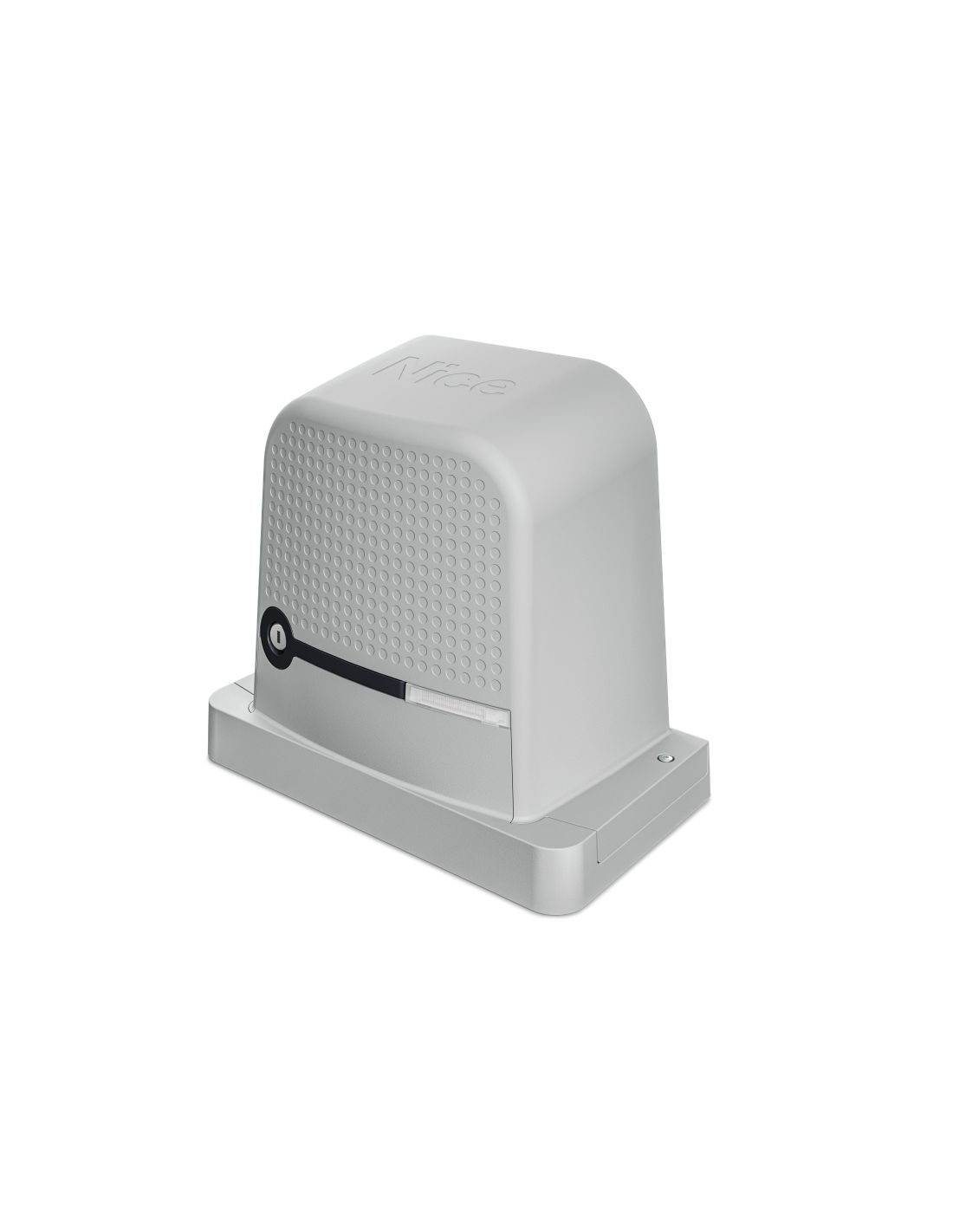

- Modelis: NICE RBS400
- Įtampa: 24 VDC
- Valdymo blokas: Integruotas
- Imtuvas: Integruotas
- Ribinis jungiklis: Magnetinis
- Lankstomiems vartams iki 400 kg
- Bendra informacija
- ModelisRBS400
- TipasNon-reversible electromechanical gearmotor, 24 VDC, integrated control unit and radio receiver, magnetic limit switch
- PritaikymasFor residential sliding gates weighing up to 400 kg
- Maitinimo šaltinis230 VAC ±10%, 50/60 Hz
- Motor voltage24 VDC
- Power rating450 W
- Current draw2.1 A
- Greitis0.34 m/s
- Thrust force400 N
- Operating cycleUp to 40 cycles/hour for a 4 m gate
- Apsaugos klasėIP44
- Darbinė temperatūra-20°C to +55°C
- Matmenys340 x 220 x 303 mm (L x W x H)
- Svoris11 kg
- Limit switch typeMagnetic
- Manual releaseEasy-to-use release lever, secured with a key
- Control unit featuresBuilt-in receiver, self-learning stroke, obstacle detection, self-diagnostics with LED feedback
- Smart programmingCompatible with MyNice Pro App, BiDi-WiFi, and Pro-View
- Connectivity systemsBlueBUS, BiDi, Yubii, Solemyo (solar), Opera
- Photocell supportEPSB, EPMB, EPLB (BlueBUS); EPMOR, EPMORB, EPMOW (reflective/wireless)
- Lighting accessoriesELDC (with antenna), WLT (multi-function flashing light)
- Atsarginė baterijaCompatible with PS124 (24 V battery kit with charger)
- Supported transmittersERA INTI, ERA ONE, MYGO, DOMÌ, ERA ONE BD, MYGOBD, ERA ONE LR (433.92 MHz rolling code)
- Racks compatibilityROA6 (steel), ROA66 (nylon), ROA7 (galvanised), ROA8 (zinc-plated)
- NotesNot compatible with O-Box features of the Opera system
- SertifikataiCE marked and compliant with EN standards
