Detector Type Perimeter protection | Alarm output 1 | Operating temperature range -10°C...+55°C | Power supply requirements 12 V DC | Current drain 12.5 mA | Colour White | Dimensions 20 x 102 x 23 mm

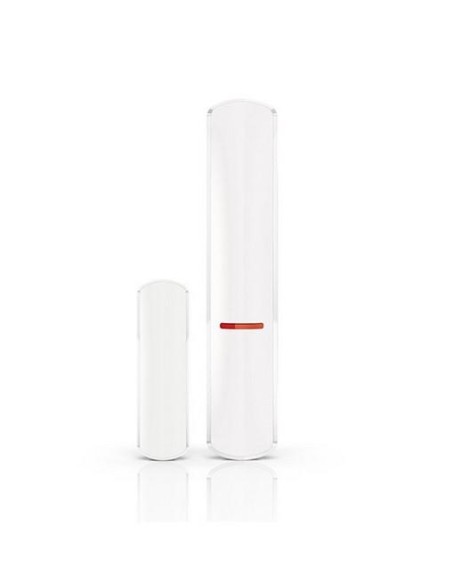

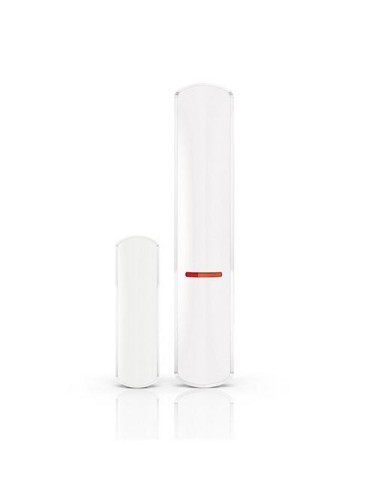

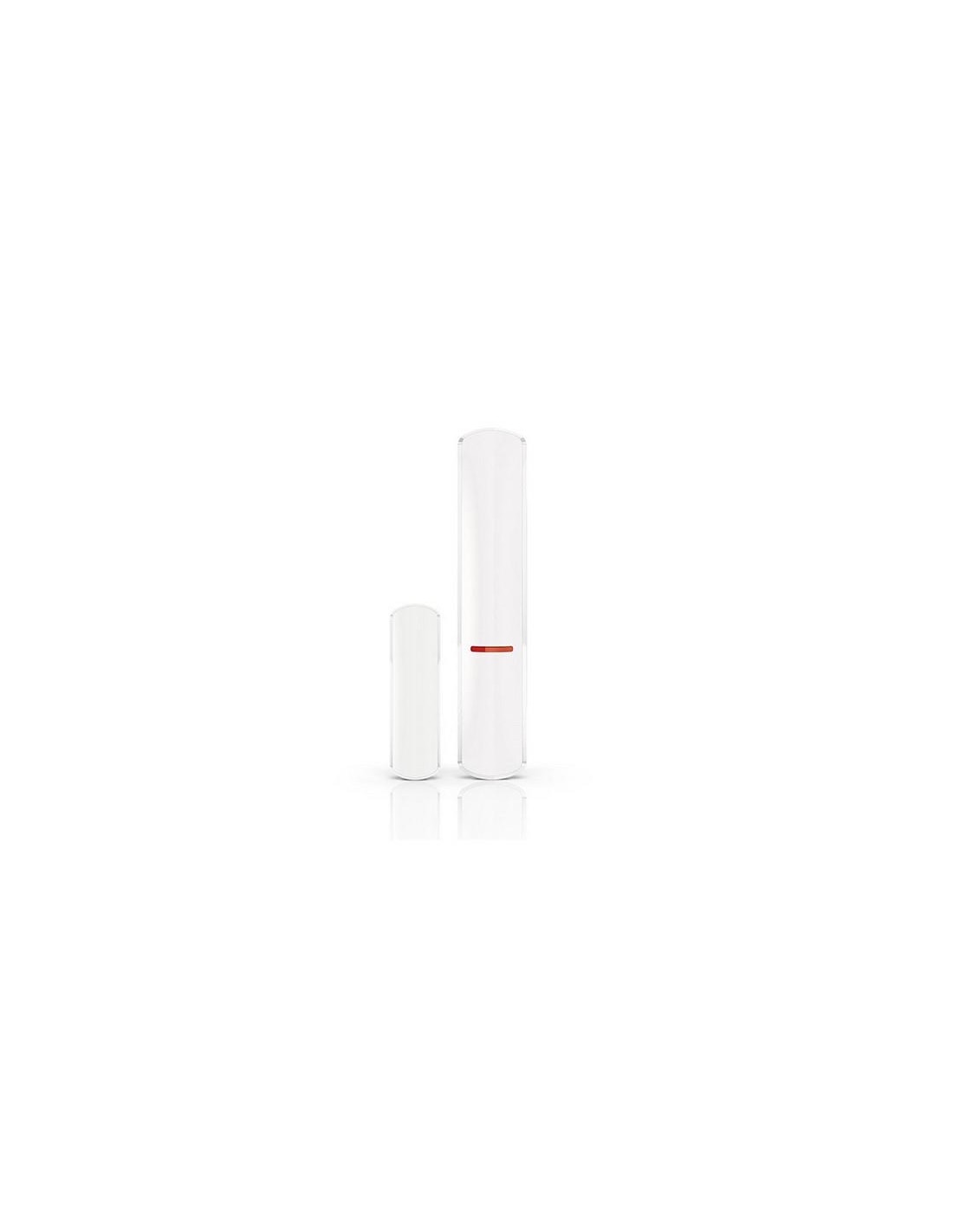

XD-2 is a multipurpose wired detector, which can operate with any alarm control panel. XD-2 can work as: magnetic contact, shock detector, shock detector and magnetic contact, and water flood detector.
mode of operation: magnetic contact, shock detector, shock detector and magnetic contact, water flood detector detection of flooding in rooms with plumbing (input for connecting external flood probe FPX-1, optional).
LED indicator
remote enabling/disabling of LED indicator
supply voltage control
tamper protection against enclosure opening and removal from mounting surface
2 magnets included (for surface and flush mounting)
- Garantija
- 36
- Category Code
- MDE
- Colour
- White
- Vendor Homepage
- www.satel.eu/en/produktid/1257
- Dimensions
- 20 x 102 x 23 mm
- Unit Box Height
- 0.04
- Unit Box Length
- 0.12
- Unit Box Width
- 0.05
- Power supply requirements
- 12 V DC
- Detector Type
- Perimeter protection
- Operating temperature range
- -10 C...+55 C
- Alarm output
- 1
- Current drain
- 12.5 mA
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00024 cubm
- Product Net Weight
- 0.046 kg
- Unit Calculated Weight
- 0.06 kg
5905033334410
